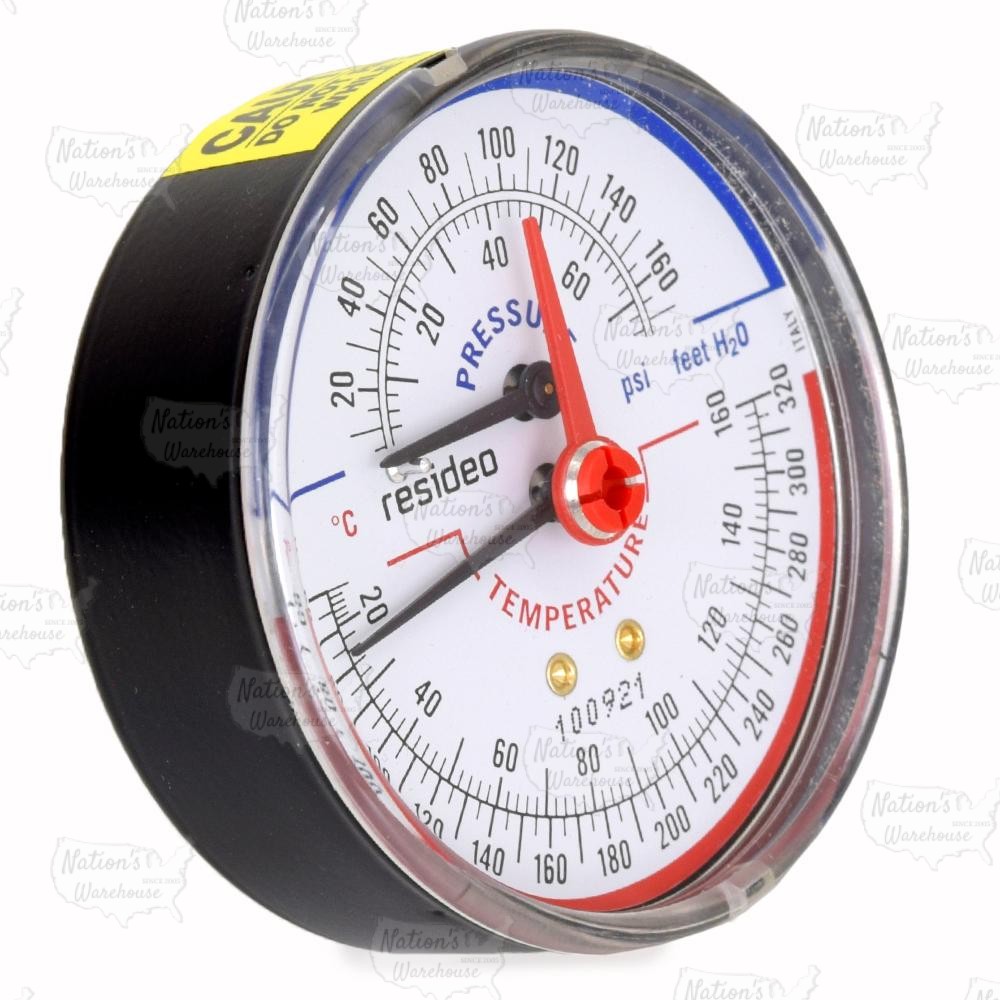

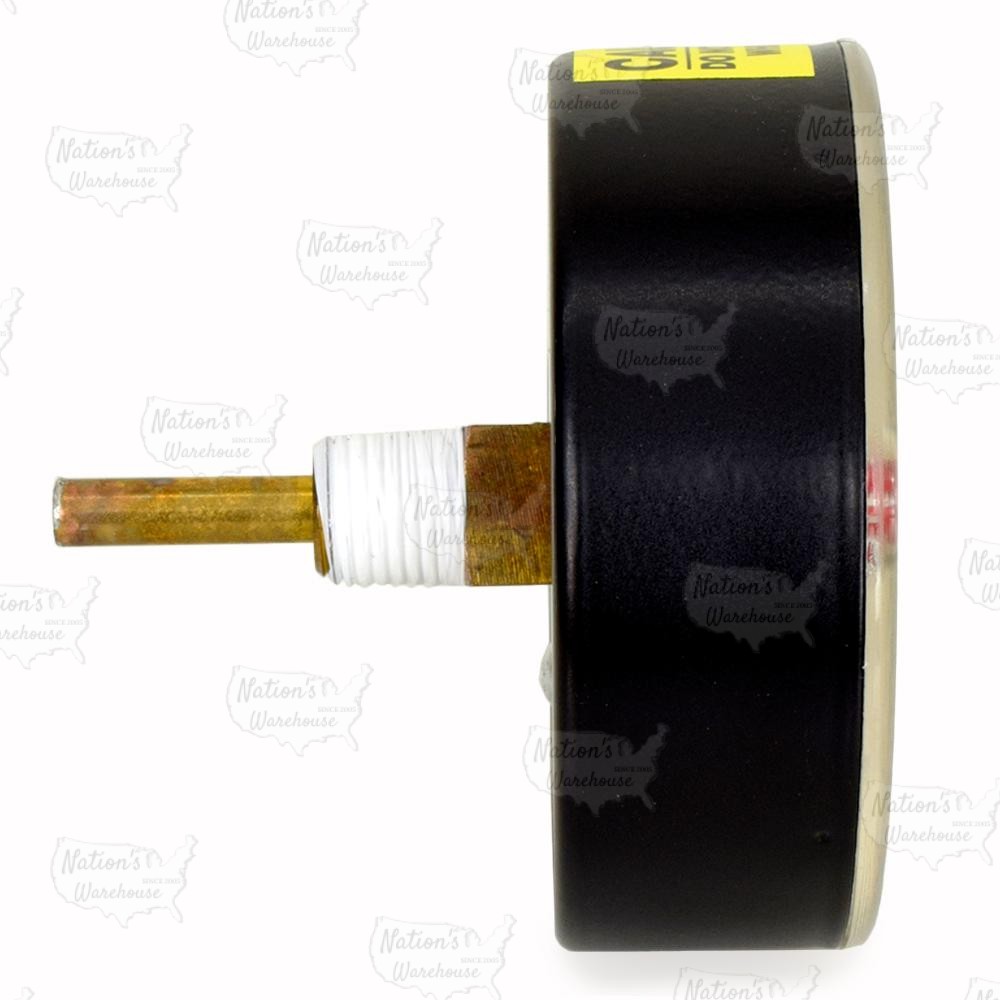

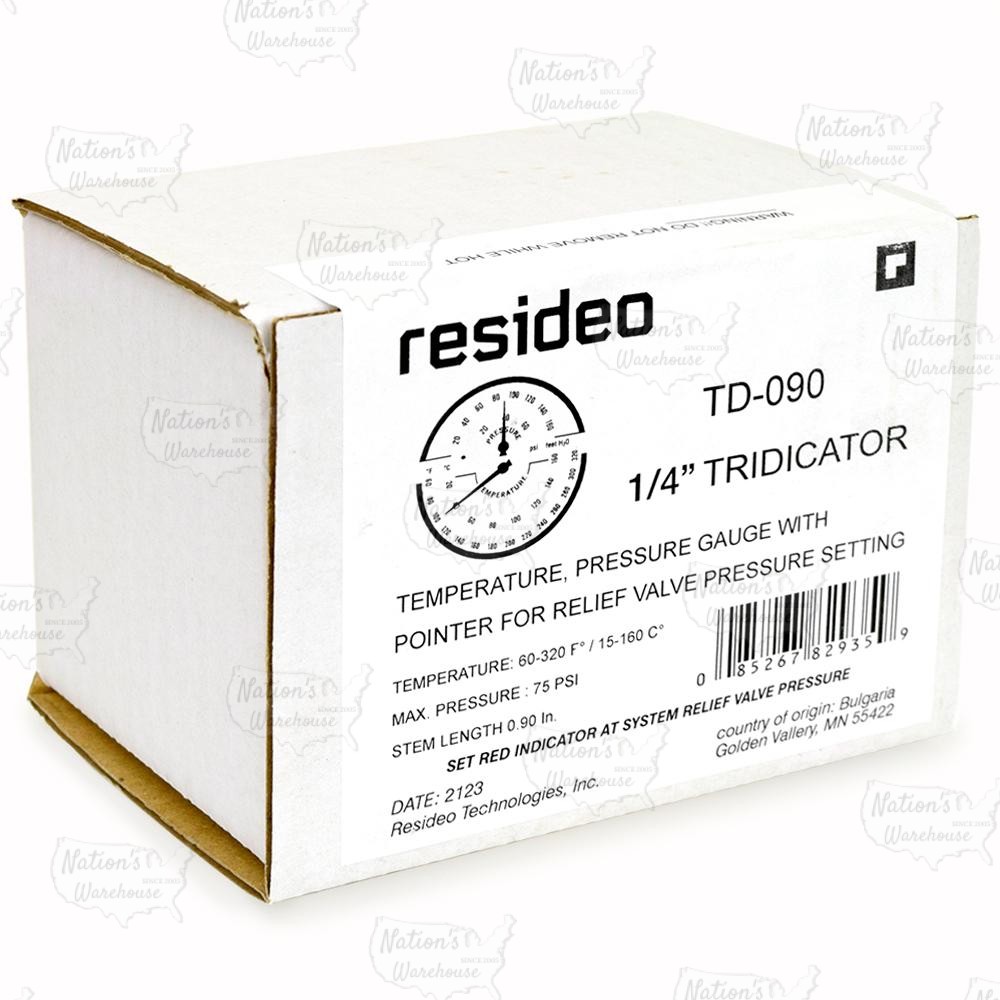

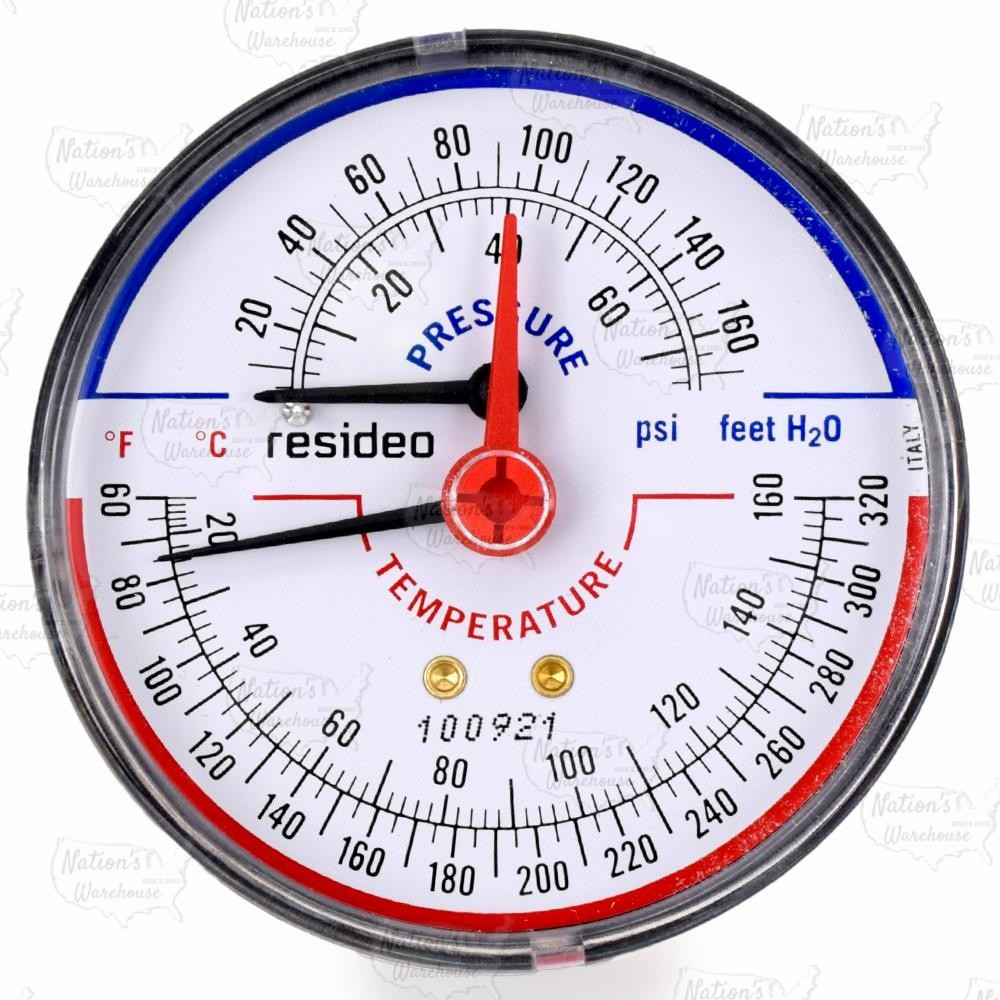

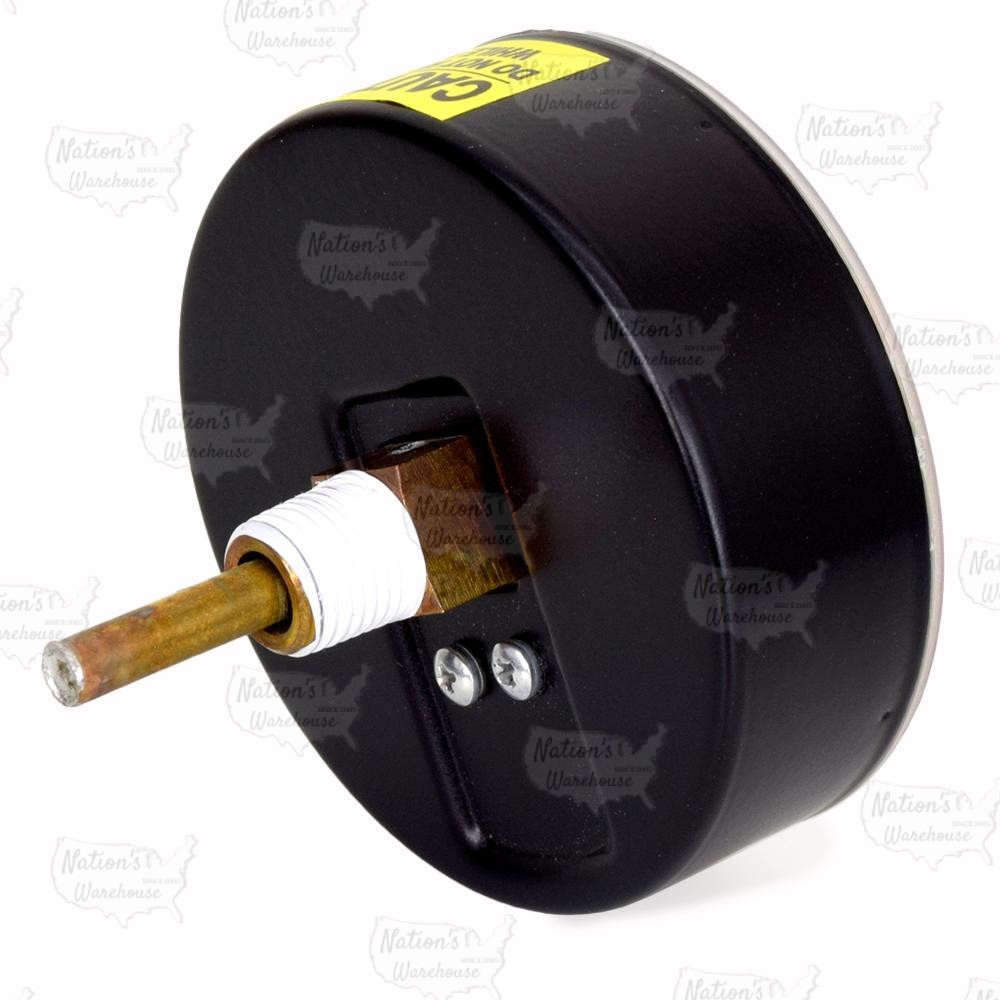

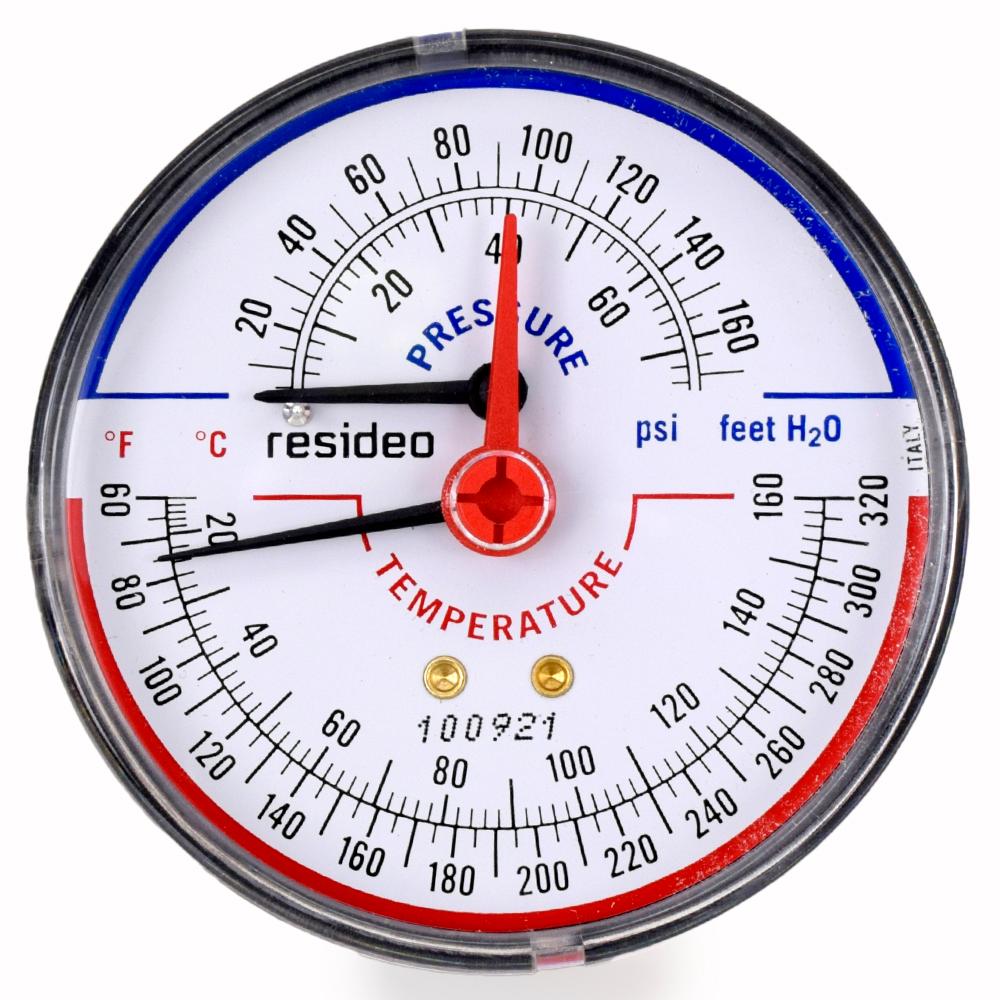

Resideo (formerly Honeywell) TD-090 is a 1/4" NPT connection Tridicator with a 3 1/8" dial size, for Heating Pressure Applications.
Wide temperature and pressure range, unique and reliable design ensure durability and functionality for the pressure/temperature gauge with relief set point indicator and the shutoff valve. TD Series temperature sensor from Micro Switch responds rapidly to temperature changes.
Technical Specifications:
- Temperature Range: 60F to 320F
- Maximum Safe Operating Pressure: 75 psi
- Dial Size: 3 1/8"
- Connection Type: NPT
- Connection Size: 1/4"
- Length: 1 21/32"
- Weight: 0.3 lb
Features:
- Measurement: Fahrenheit/ Celsius/ PSI
- Maximum Temperature: 320F
- Maximum Safe Operating Pressure: 75 psi
