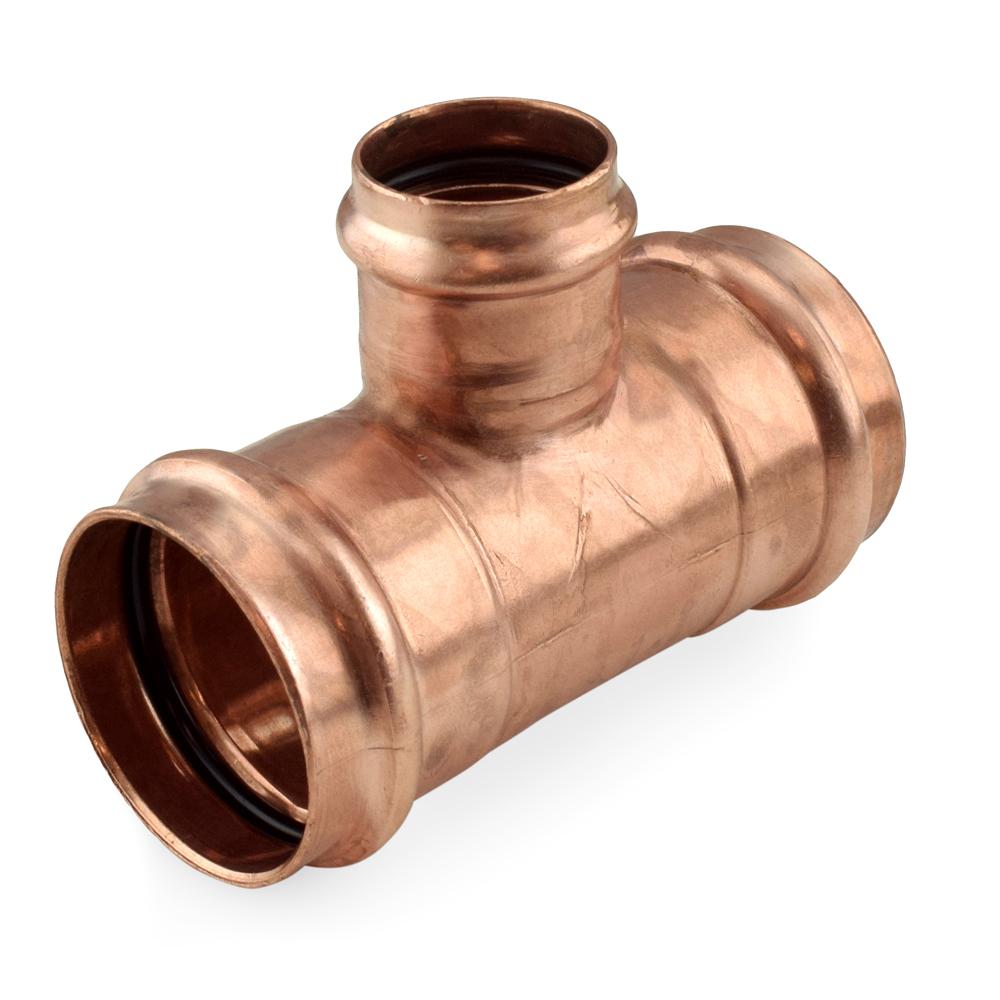

The 10075118 from Apollo is a 2” x 2 x 1-1/4” Press Copper Tee. This press tee connects three copper pipes together.
Features:
- Made in the USA;
- Lead-free, approved for potable water use nationwide;
- Meets NSF/ANSI 61 & 372, UPC and ICC compliant (see Literature for complete list of approvals);
- Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.;
- Heat & flame-free installation, no fluxing, cleaning, soldering or prep. work;
- Compatible with most compression tools;
- Leak Before Press feature.
Technical Specifications:
- Hot & cold water: up to 200 psi at 33°F-250°F;
- Low pressure steam: up to 15 psi;
- Compressed air & inert gases: up to 140 psi;
- For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing;
- O-ring material: EPDM;
- O-ring lubricant: NSF/ANSI 61 listed silicone oil.
| Material | |
| Copper | |
| Size | |
| 1-1/4" | |
| 2" | |
| Connections | |
| Press | |
| Fitting Type | |
| Press Tees | |
| Product Type | |
| Copper Press Fittings | |
| Brand | |
| Apollo | |
| Origin | |
| Made In USA | |
