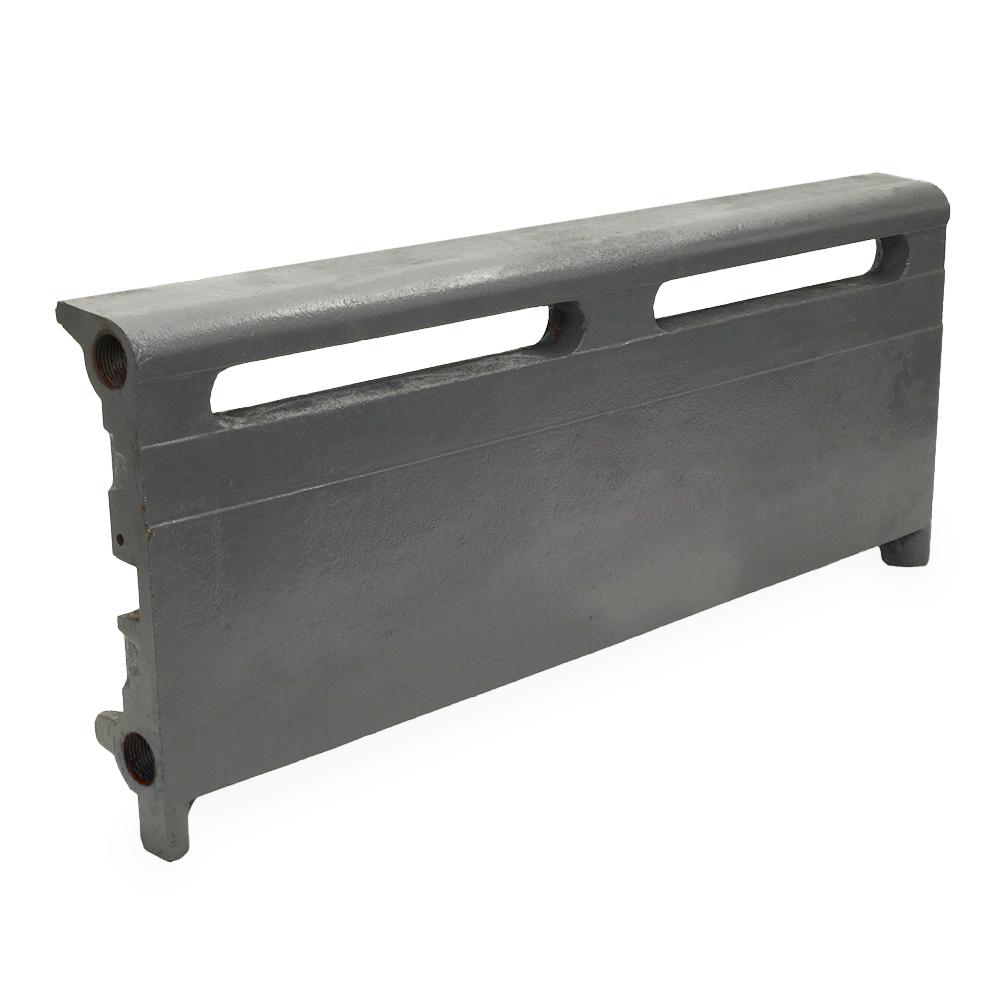

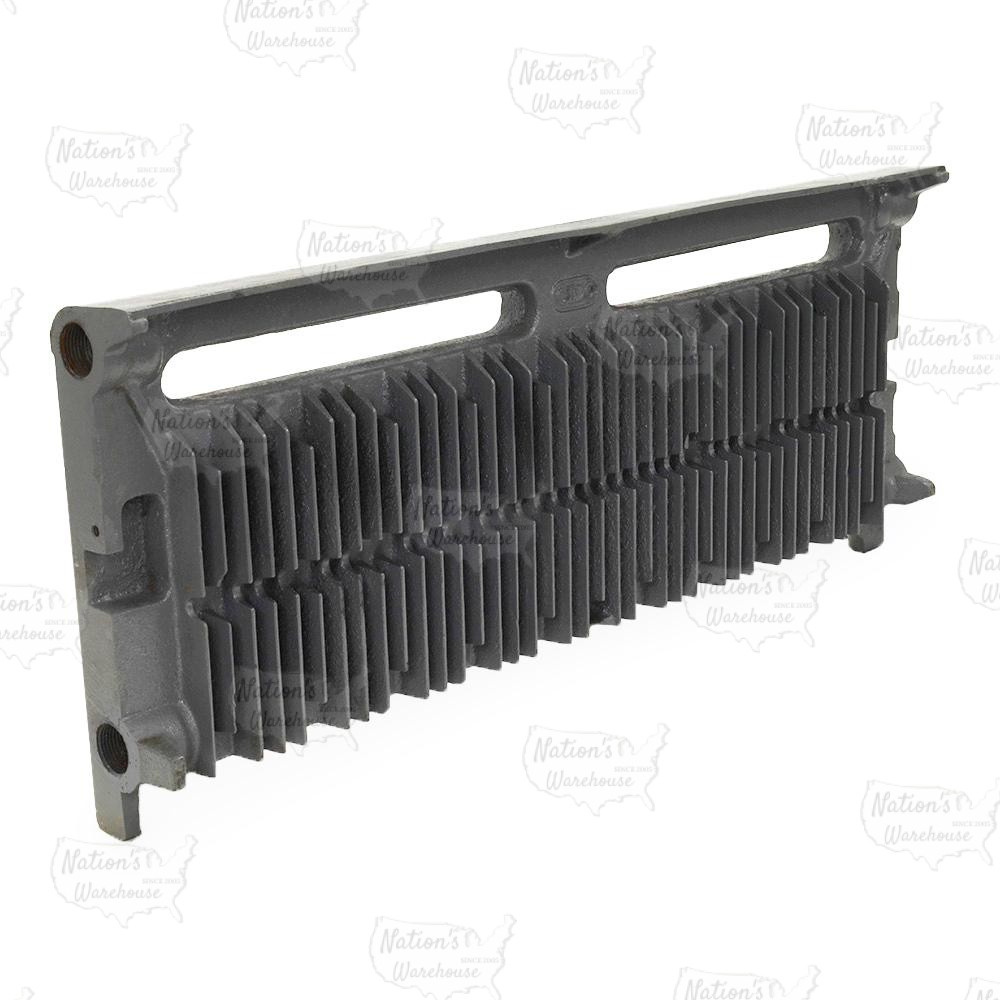

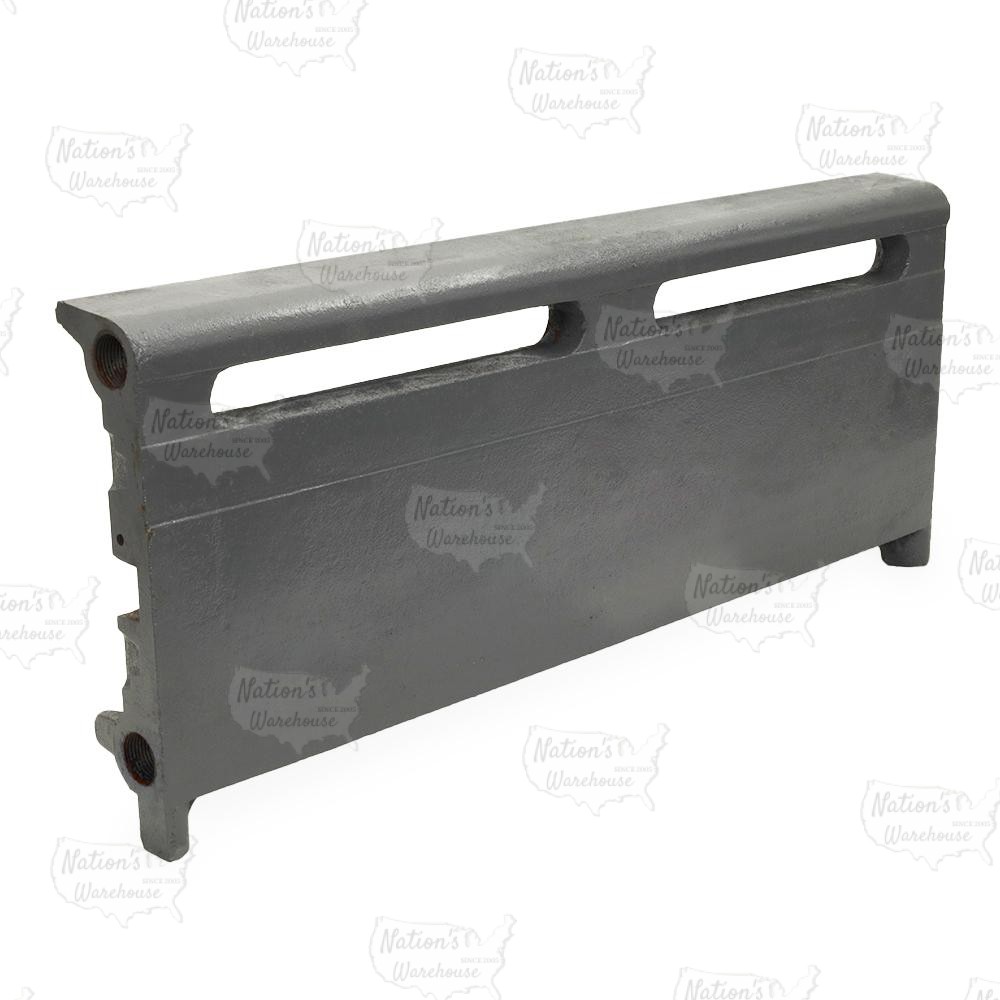

2ft Cast Iron Baseboard Radiator, Floor Standing, 10" H x 2-1/2" D x 24" W..
Technical Specifications:
Features:
Technical Specifications:
- Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 24" Long/Wide (overall)
- Weight: approx 34 lbs
- Connections: (4) 3/4" FNPT threaded (2 on ea. side - one on top and one on bottom)
- Material: Cast Iron
- Max Operating Pressure: 30 psi Water or 15 psi Steam
- BTU's @ 160F: 880 BTU/hr @ 1GPM, 940 BTU/hr @ 4GPM
- BTU's @ 180F: 1140 BTU/hr @ 1GPM, 1200 BTU/hr @ 4GPM
- BTU's @ 200F: 1400 BTU/hr @ 1GPM, 1480 BTU/hr @ 4GPM
- Steam BTU's: 1560 BTU/hr
- For BTU ratings at other temperatures and flow rates, see Specs file.
Features:
- Up to 2x the output of conventional baseboard and up to 5x the radiant heat
- One-piece, solid cast iron construction
- Heavy-duty vandal-resistant design
- Utilizes both convection and radiant heat for smoother, more comfortable space heating
- Quieter operation than conventional baseboards
- Can be painted to match interior design colors
