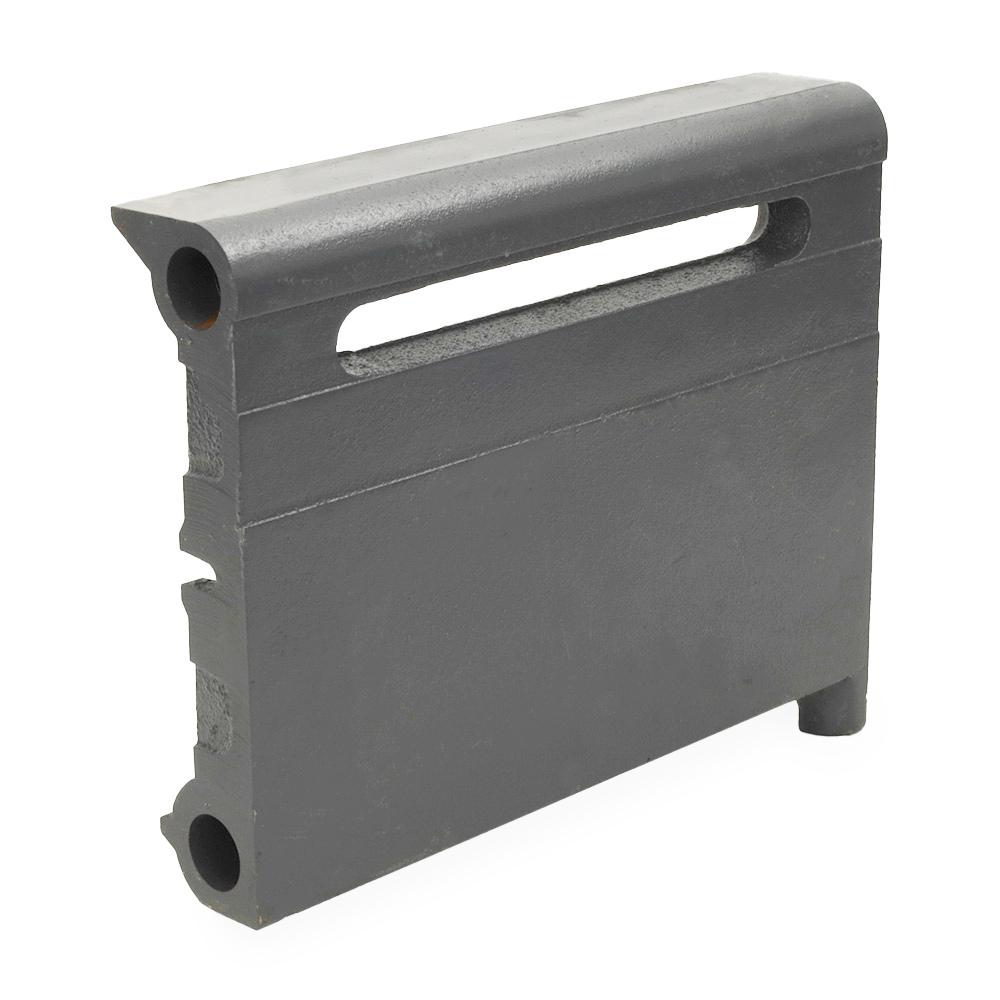

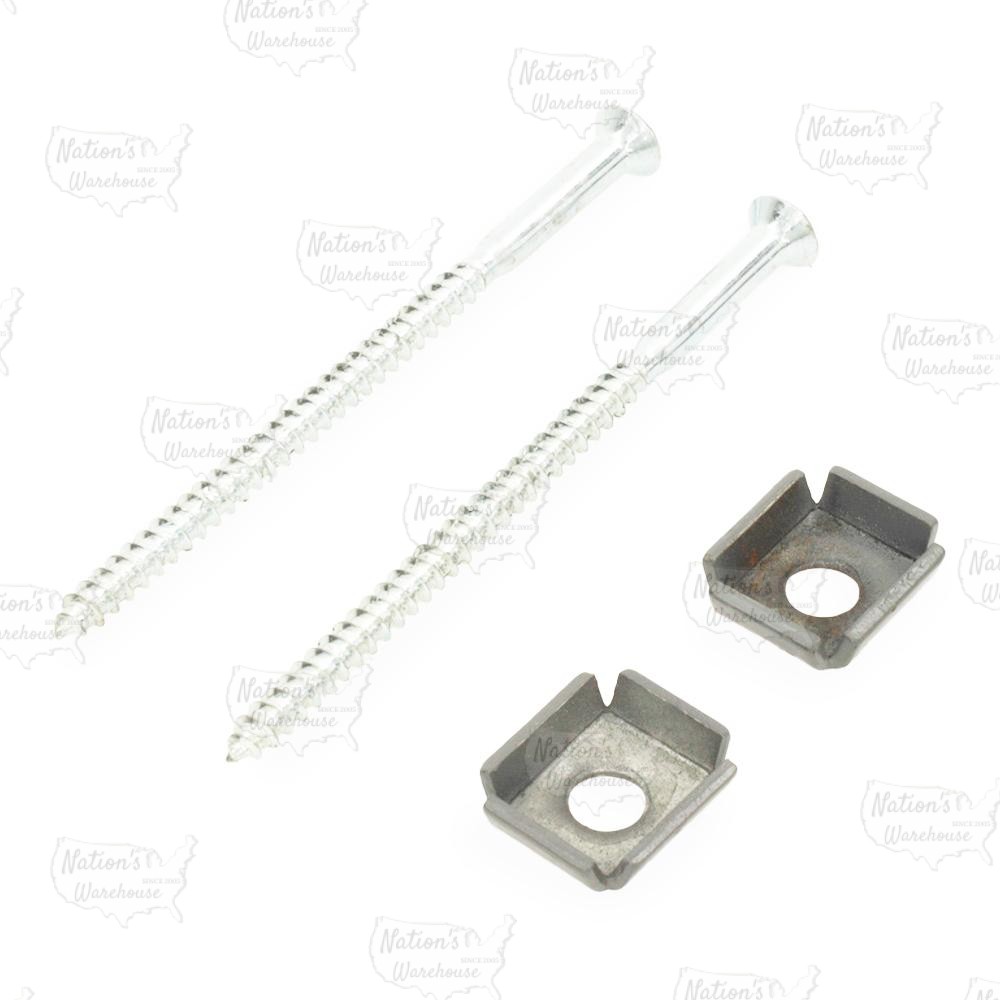

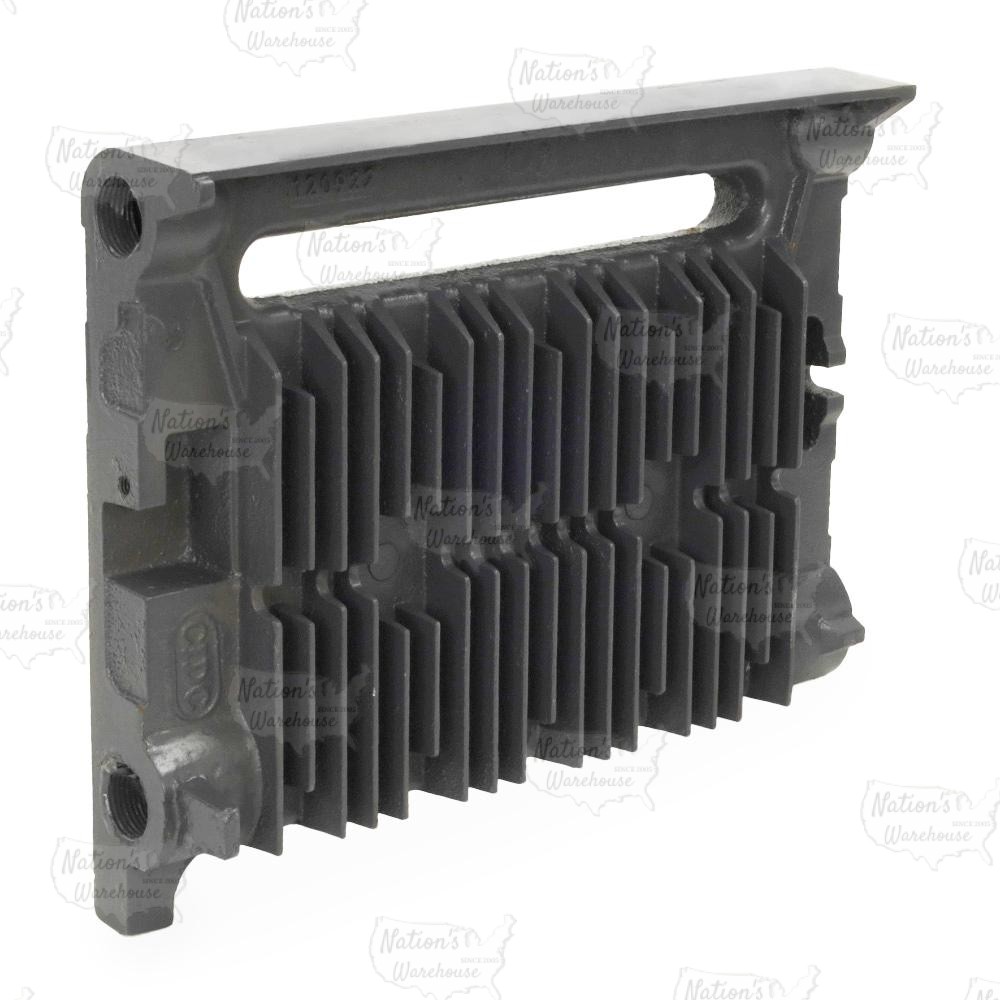

12" long solid cast iron baseboard section (Right) with wall anchor kit. Intended for assembly with another section to form a desired length continuous baseboard.
Technical Specifications:
Features:
Technical Specifications:
- Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 12" Long/Wide (overall)
- Weight: approx 17 lbs
- Connections: (2) 3/4" FNPT threaded on right side and (2) push nipple connections (for attaching another baseboard section) on left side
- Material: Cast Iron
- Max Operating Pressure: 30 psi Water or 15 psi Steam
- BTU's @ 160F: 440 BTU/hr @ 1GPM, 470 BTU/hr @ 4GPM
- BTU's @ 180F: 570 BTU/hr @ 1GPM, 600 BTU/hr @ 4GPM
- BTU's @ 200F: 700 BTU/hr @ 1GPM, 740 BTU/hr @ 4GPM
- Steam BTU's: 780 BTU/hr
- For BTU ratings at other temperatures and flow rates, see Specs file.
Features:
- Up to 2x the output of conventional baseboard and up to 5x the radiant heat
- One-piece, solid cast iron construction
- Heavy-duty vandal-resistant design
- Combine with other sections to create continuous baseboard lengths up to 18ft
- Utilizes both convection and radiant heat for smoother, more comfortable space heating
- Quieter operation than conventional baseboards
- Can be painted to match interior design colors
