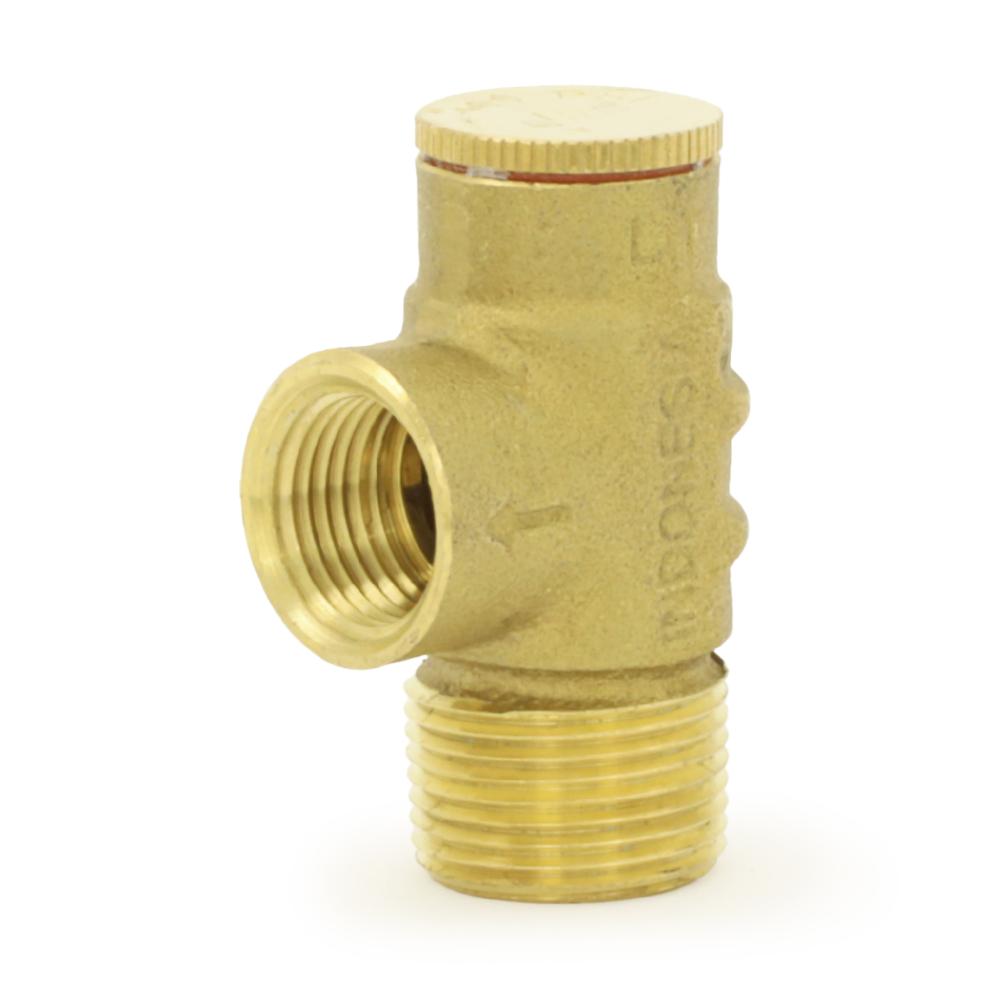

100 psi fixed (non-adjustable) pressure relief valve with 3/4" MNPT inlet x 1/2" FPNT discharge connections.
Made from lead-free brass.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).
Technical Specifications:
Features:
Made from lead-free brass.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).
Technical Specifications:
- Pressure Relief Setting: 100 psi (fixed, non-adjustable), +/- 15% accuracy
- Inlet Connection: 1/2" MNPT
- Outlet (Discharge) Connection: 1/2" FNPT
- Operating Temperature Range: 40 - 160°F
Features:
- For use in cold water applications, including well water pressure tank systems
- Protects pipes, system components and pressure tank from overpressure
- Lead-free brass, NSF/ANSI 372 listed
- Threads made to ANSI/ASME B1.20.1 standard
