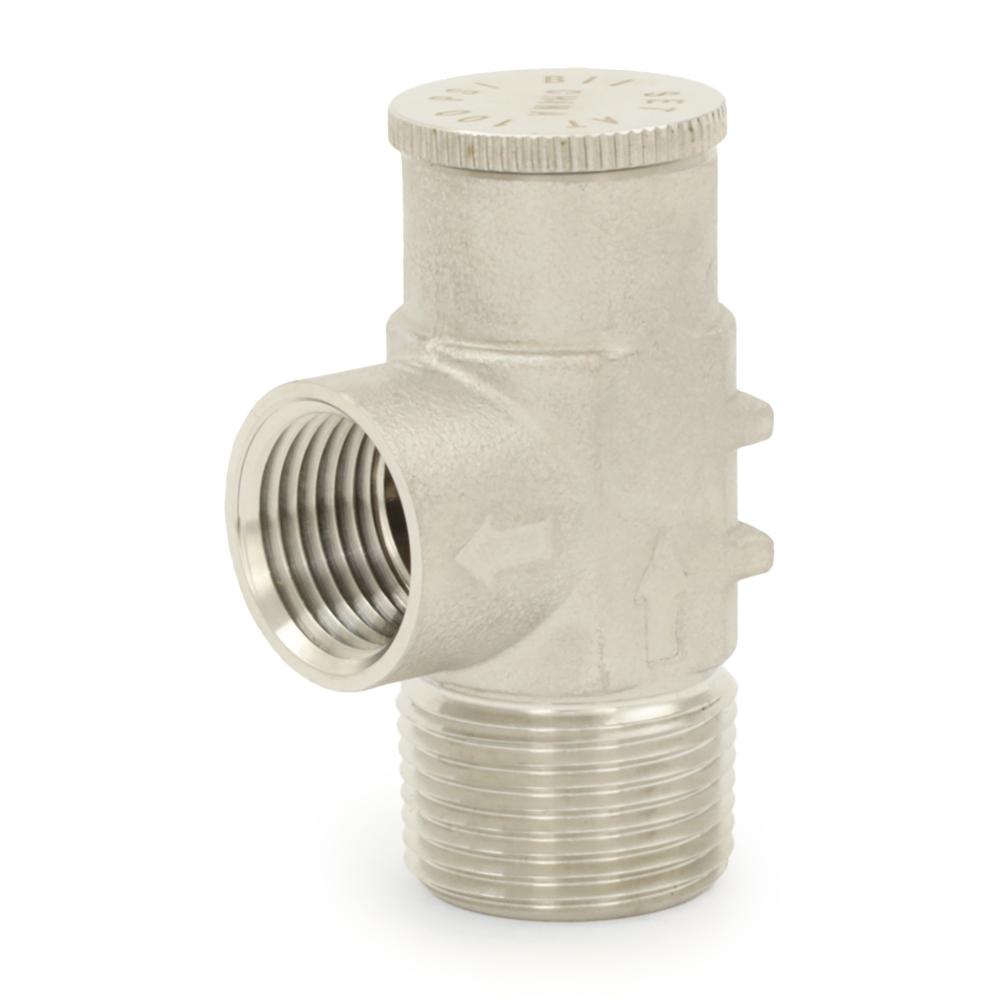

100 psi fixed (non-adjustable) pressure relief valve with 3/4" MNPT inlet x 1/2" FPNT discharge connections.
Made from lead-free 304 stainless steel.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).
Technical Specifications:
Features:
Made from lead-free 304 stainless steel.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).
Technical Specifications:
- Pressure Relief Setting: 100 psi (fixed, non-adjustable), +/- 15% accuracy
- Inlet Connection: 3/4" MNPT
- Outlet (Discharge) Connection: 1/2" FNPT
- Max. Operating Temperature: 248°F
- Materials: 304 Stainless Steel components, NBR seat, PTFE packing
Features:
- For use in cold water applications, including well water pressure tank systems
- Protects pipes, system components and pressure tank from overpressure
- 304 Stainless Steel is lead-free, offers superior corrosion resistance and 100% resistance to dezincification
- Threads made to ANSI/ASME B1.20.1 standard
- Listed to NSF/ANSI 372
