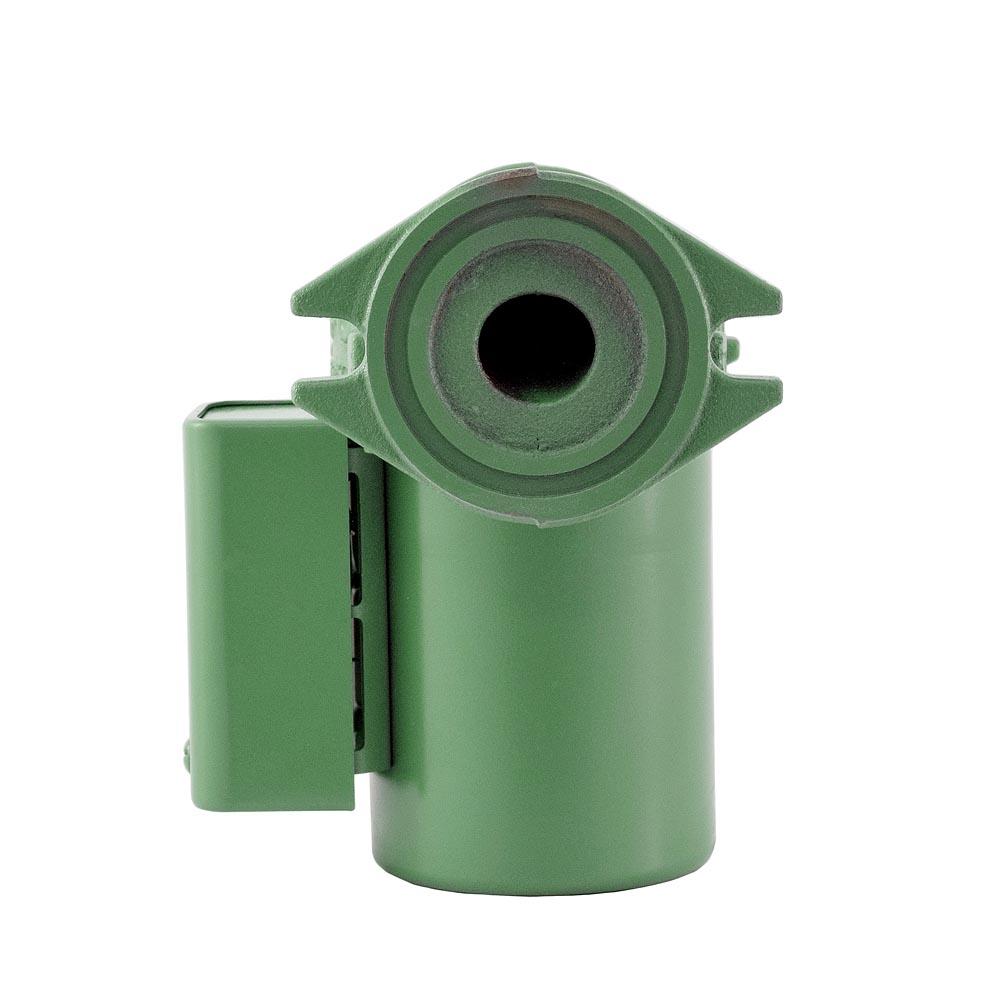

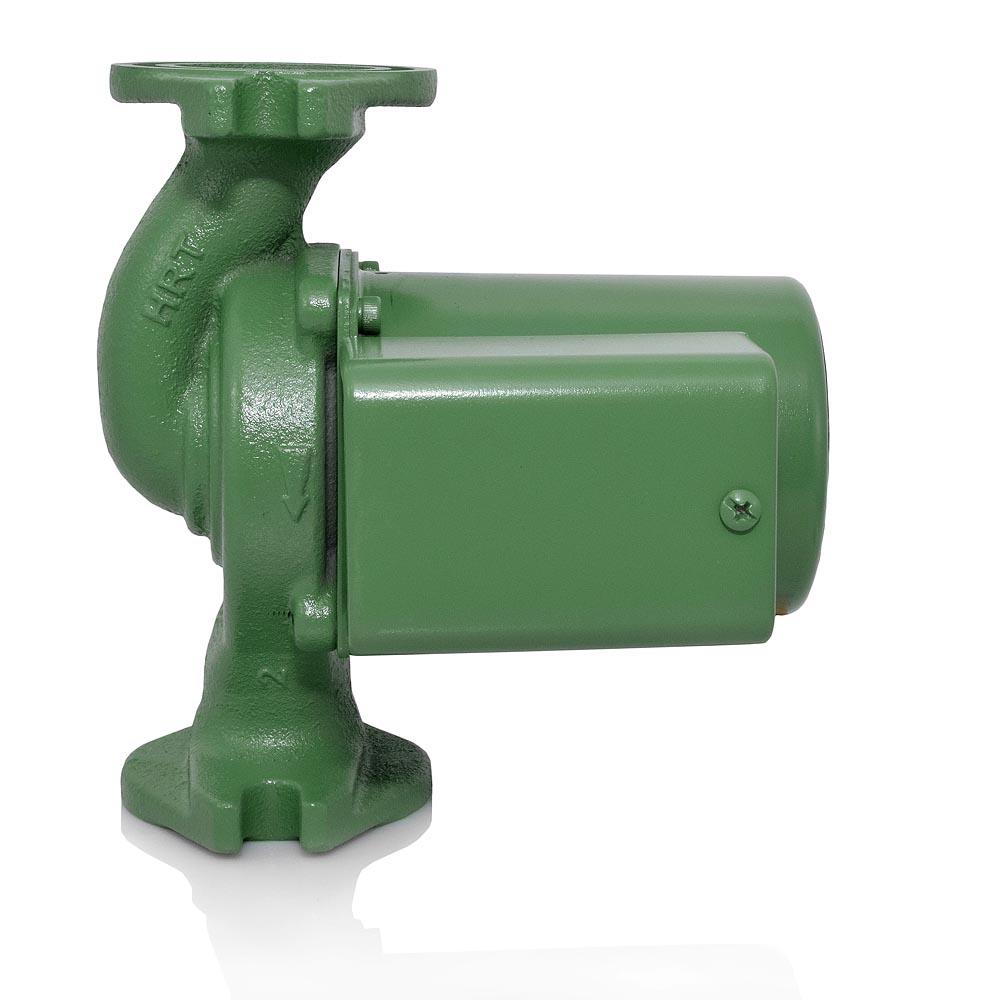

Taco 007-F5-8IFC Circulator Pump with IFC, 1/25 HP, 115V

The 007-F5-8IFC from Taco is a Cast Iron Circulator Pump w/ IFC, 1/25HP, 115V. It's designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-8IFC model pump there is no need to install separate in-line flow check. The IFC reduces a pressure drop and increases flow performance versus in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.


Applications:

  • Hydronic Heating/Cooling;
  • Radiant Heating;
  • Zoning with Pumps;
  • Hydro-Air Fan Coils;
  • And others.


Features:

  • Low-Lead Compliant;

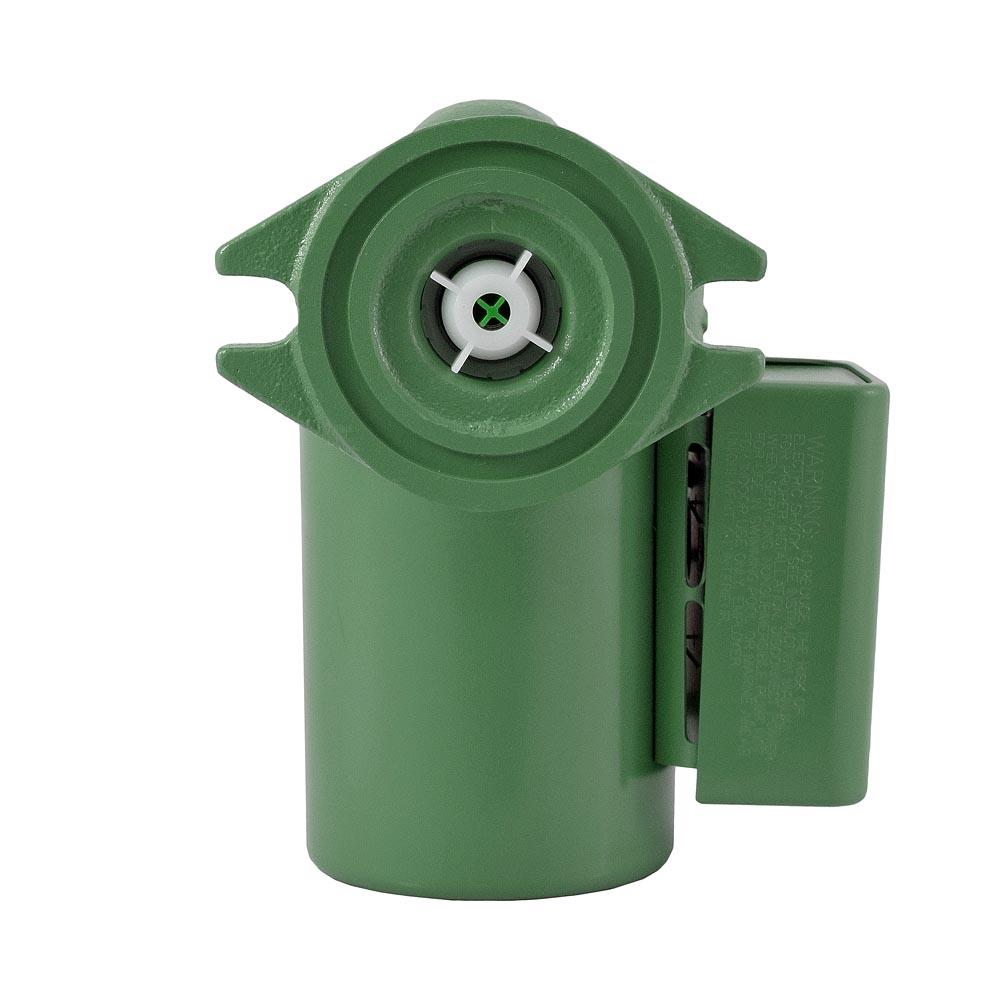

  • IFC (Integral Flow Check);
  • Unique replaceable cartridge;
  • Unmatched reliablility;
  • Quiet,efficient Operation;
  • Self lubricating, no mechnical seal;
  • Wide range of applications;
  • Flanged connection;
  • Maintenance free.


Technical Specifications:

  • Horsepower: 1/25 HP;
  • Flow Range: 0 – 17 GPM;
  • Head Range: 0 – 8.5 Feet;
  • Minimum Fluid Temperature: 40°F (4°C);
  • Maximum Fluid Temperature: 230°F (110°C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Rotated Flanged.
  • Material: Cast Iron;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.71A;
  • Approvals: cULus (Indoor use only), NSF/ANSI 372.

Warranty:

  • 3 year manufacturer's warranty. Low-Lead Compliant;
Material
Cast Iron
Features
Check Valve
Type
1-Speed Pumps
Connections
Flanged
Application
Heating
Max. Head
10-20 ft
Max. Flow
10-20 GPM
Voltage
115V
Horse Power
1/25 HP
Series
007
Product Type
Circulator Pumps
Brand
Taco

Taco 007-F5-8IFC Circulator Pump with IFC, 1/25 HP, 115V

  • Views: 2875
  • Taco 007-F5-8IFC Circulator Pump with IFC, 1/25 HP, 115V QR Code
    QR
  • Brand: Taco
  • Model: 007-F5-8IFC
  • MPN: 007-F5-8IFC
  • Availability: 1
  • $ 126.95
